GJ-A03 light touch switch Electrical parameters
Operating temperature: - 20~+80 ℃;
Maximum rating: 50mA 12V DC;
Minimum rating: 10 μ A 1V DC；
Contact resistance: ≤ 100m Ω;
Insulation resistance: ≥ 100M Ω;
Withstand voltage: 250V AC;

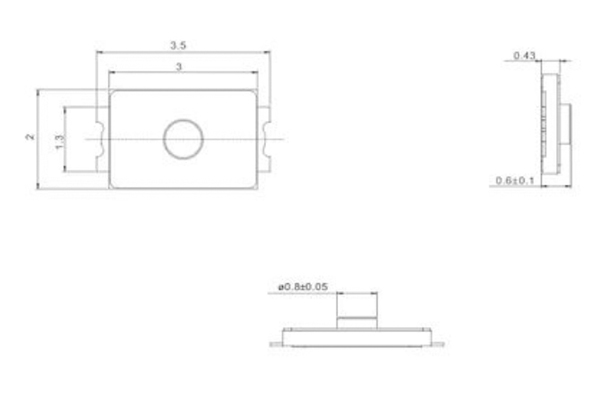

GJ-A03 light touch switch Dimension drawing
GJ-A03 light touch switch Material parameters
Contact point: aluminum alloy;
Body: PPA/LCP;
Shrapnel: stainless steel;
Button: PPA/LCP;
GJ-A03 light touch switch Circuit diagram

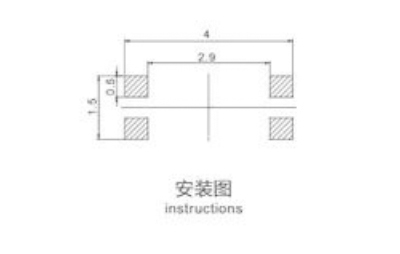

GJ-A03 light touch switch Installation diagram
