Electrical parameters of GJ-A021 touch switch
Operating temperature: - 20~+80 ℃;
Maximum rating: 50mA 12V DC;
Minimum rating: 10 μ A 1V DC；
Contact resistance: ≤ 100m Ω;
Insulation resistance: ≥ 100M Ω;
Withstand voltage: 250V AC;

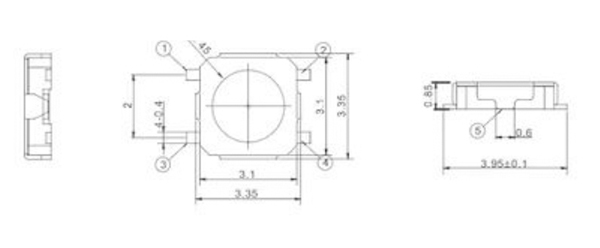

GJ-A021 Size Drawing of Light Touch Switch
Material parameters of GJ-A021 touch switch
Contact point: copper alloy;
Body: PPA/LCP;
Shrapnel: stainless steel;
Cover plate: stainless steel;
Button: PPA/LCP;

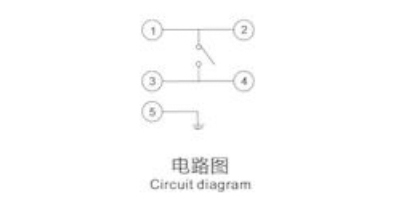

Circuit diagram of GJ-A021 touch switch

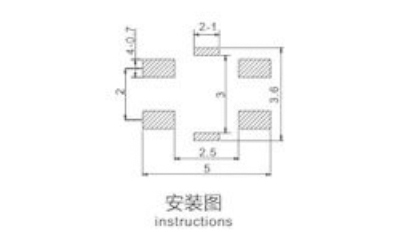

GJ-A021 Light Touch Switch Installation Drawing
